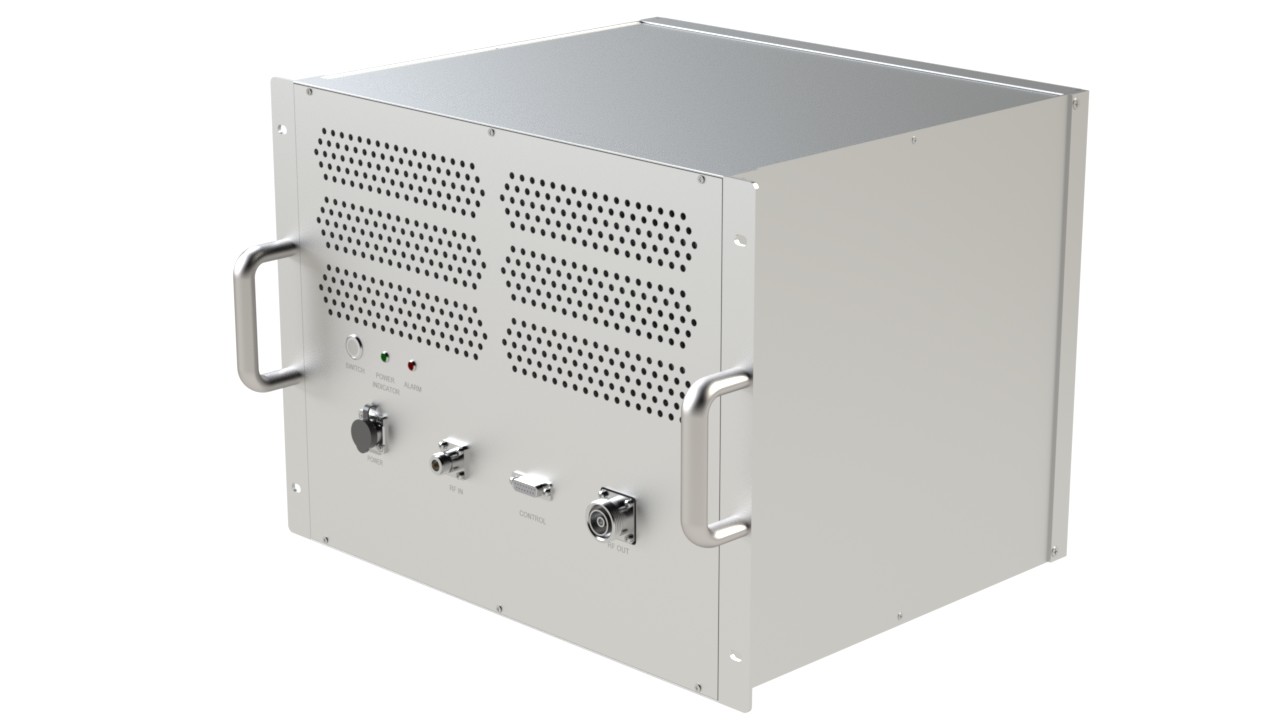

1-2GHz 4kW Rf Power Amplifier for American customer

2023-08-09

Latest company case about 1-2GHz 4kW Rf Power Amplifier for American customer

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Parameter Specification Notes
Operating Frequency Range 1.0 - 2.0 GHz
Power Output @ Peak Pulse 4.0 KW Min Peak Pulse
Input Pulse Characteristics Droop
<1 dB
Power Gain 66 dB Min
Power Gain Flatness 2.0 dB p-p Max Constant input power
Input Return Loss -10 dB Max Relative to 50 Ω
Cycle, Pulse Width, Duty Cycle 4ms，100us，2.5%
Noise Figure 6 dB Max
Output Power On/Off Ratio -90 dB Max TTL Gate Control
Harmonics <-20 dBc Typ At rated output power
Spurious -60 dBc Max Non-harmonics
Operating Voltage 100 - 240 VAC 50 - 60Hz
Power Consumption 1.5 KW Max At rated Pout
Input Power Protection +8 dBm Max <10Sec without damage
Load VSWR Full spec @ 1.5 : 1 & Operational @ 2 : 1
Operating Ambient Temperature 0 to +50 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95 % Non-condensing
Dimensions W x H x D 8U
Weight 40 Kg.
RF Connectors In / Out Type-N F / DIN Rack mount chassis
AC Power / Interface Connector MS / D-Sub
Cooling Built in Fan Cooling Variable speed





Parameter Specification Notes
Operating Ambient Temperature 0 to +50 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95 % Non-condensing
Parameter Specification Notes
Dimensions W x H x D 483mm x 356 mm x 380 mm (8U) Rack mount chassis
Weight 40 Kg.
RF Connectors In / Out Type-N F / DIN
AC Power / Interface Connector MS / D-Sub
Cooling Built in Fan Cooling Variable speed
