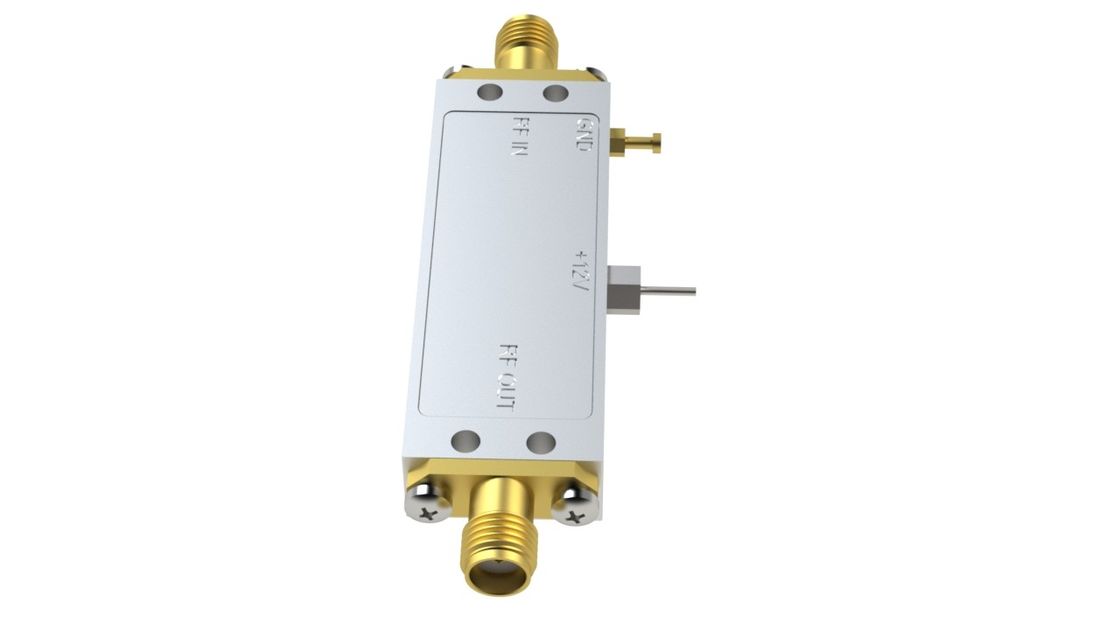

0.1-18 GHz P1dB 10 dBm Wide Band Low Noise Amplifier for Satellite and Space Communication
Description
The 0.1-18 GHz Wideband Low Noise Amplifier (LNA) is a high-performance RF amplifier designed to deliver high gain and low noise characteristics over an extremely wide frequency range. Its key features include:
This LNA is ideal for applications requiring high sensitivity, low noise, and broad frequency coverage, especially in fields like military, communications, and scientific research, where it serves as a key component in high-performance systems.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 0.1 | 18 | GHz | |
| Small Signal Gain | 10 | dB | ||
| Small Signal Gain Flatness | ±2 | dB | ||
| Noise Figure | 5 | dB | ||
| Output Power 1dB compression | 10 | dBm | ||
| IP3 | dBm | |||
| VSWR Input/output | 2:1 | Ratio | ||
| DC Power Supply | 12 | Volt | ||
| Current | 150 | mA | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +20 | dBm | ||
| Operating Temperature | -40 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||
| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |

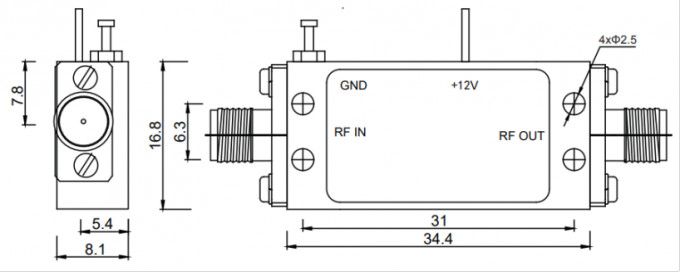

| Dimensions | 34.4*16.8*8.1 | Max | Millimeter |
| Weight | 50 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| Impedance | 50 | Ohms | |
