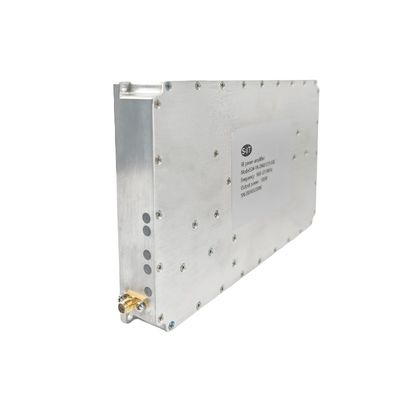

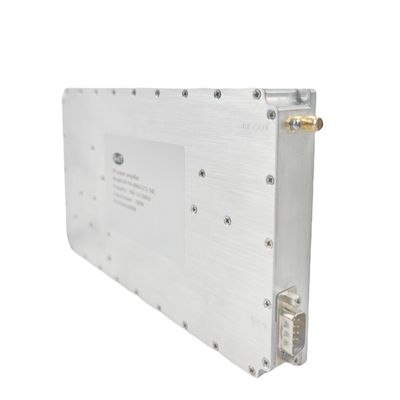

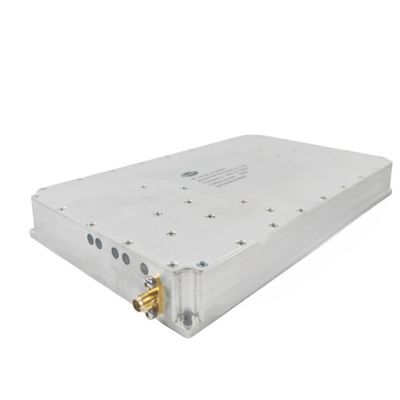

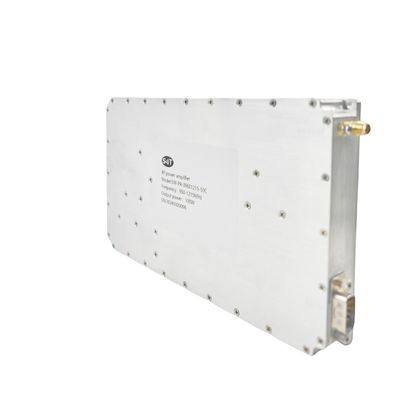

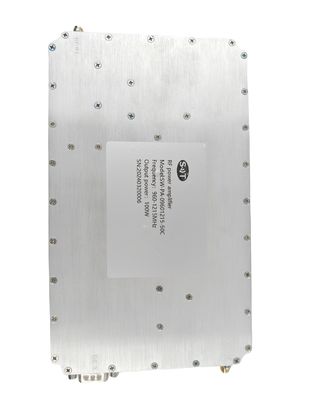

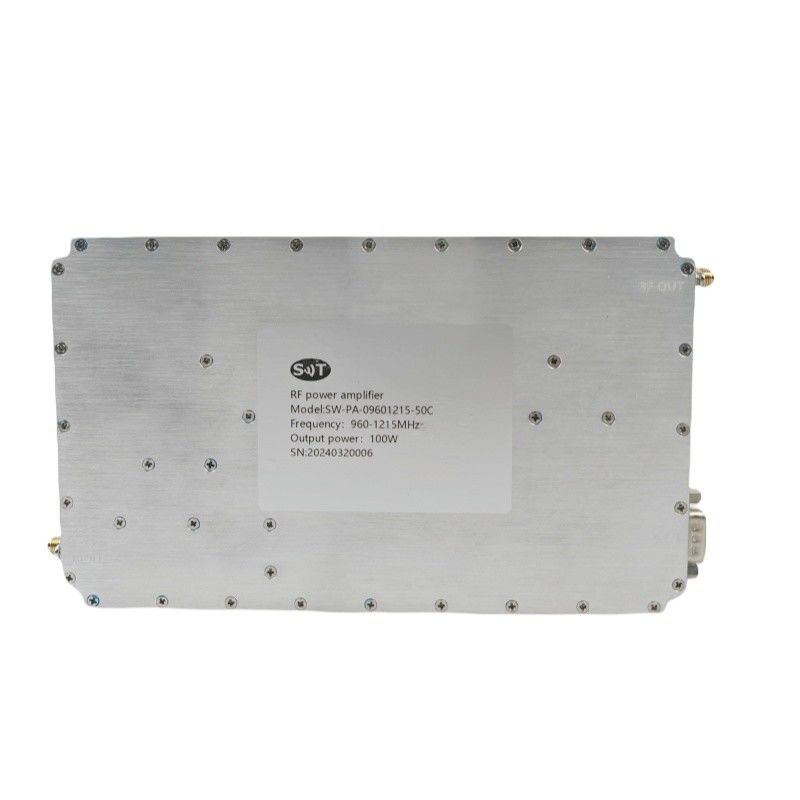

960-1215MHz 50dBm Output Power L Band Solid State RF Power Amplifier for Telecommunication, Radar
Description

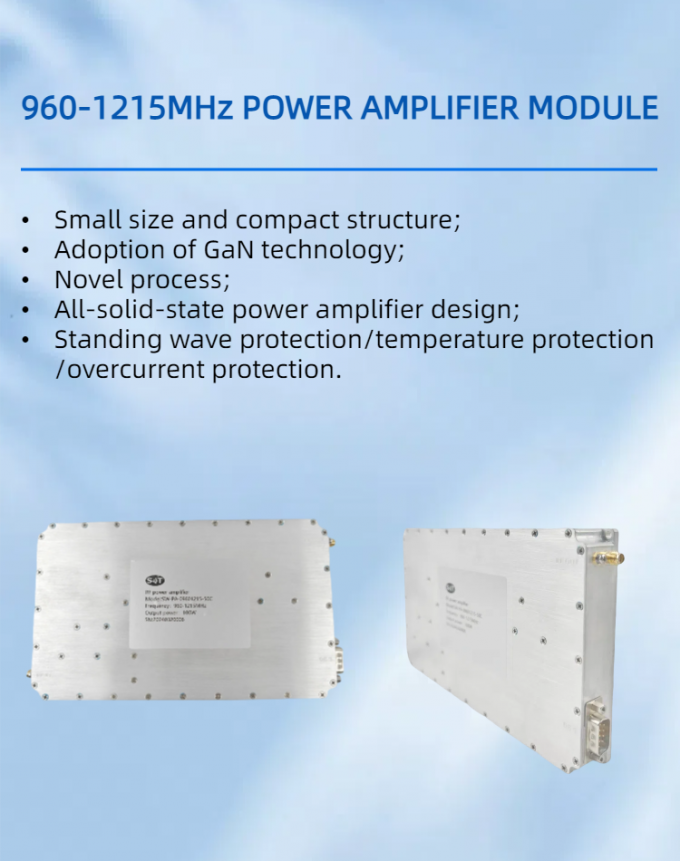

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

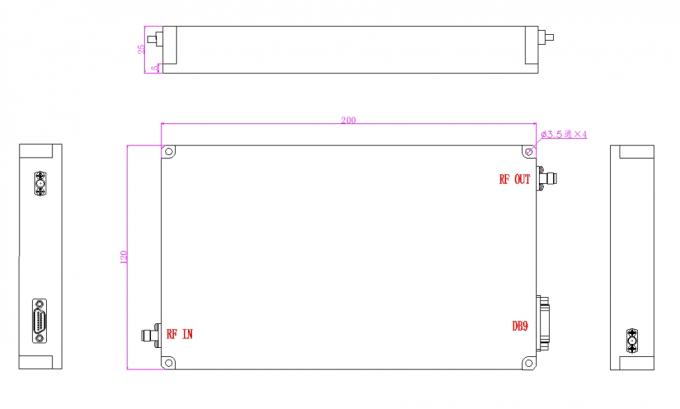

Outline Dimensional Drawing
Specification
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
960 |
1087 |
1215 |
MHz |
| RF INPUT |
|
0 |
|
dBm |
| P-1dB Output Power |
|
50 |
|
dBm |
| Gain |
|
50 |
|
dB |
| Power Gain Flatness |
|
2 |
3 |
dB |
| Input VSWR |
|
1.5 |
|
|
| Operating Voltage |
|
28 |
|
VDC |
| Spurious Signals |
|
|
-60 |
dBc |
| Harmonic Signals |
|
-20 |
|
dBc |
| Current |
|
12 |
|
A |
| Third Order Intercept Point (dBm) 2Tone@44dBm/Tone,A=1 MHz |
|
33 |
|
dBc |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
200*120*25 |
mm |
| RF Connectors (Input / Output) |
SMA- KFD/ SMA- KFD |
-- |
| DC / Control Connector |
DB9 |
-- |
| Cooling |
Baseplate Conduction - Optional Heatsink Available |
-- |
| Mounting |
3-4 Thru Hole |
-- |
| Weight |
≤1.5 |
kg
|
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
-20 |
+55 |
°C |
| Humidity Range |
0-100 |
% |
| Max RF Input |
+3 |
dBm |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
| INPUT/OUTPUT PINS |
| AMPLIFIER CONNECTOR TYPE: |
DB9 |
| TRIAD CABLE PART NUMBER: |
-- |
| PIN NUMBER |
LABEL |
DESCRIPTION |
| 1-3 |
+VDC |
+28V |
| 4-6 |
GND |
Ground |
| 7 |
Amp Enable |
TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 8 |
FWD |
Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 9 |
REV |
Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) |
| |
|
|
|
