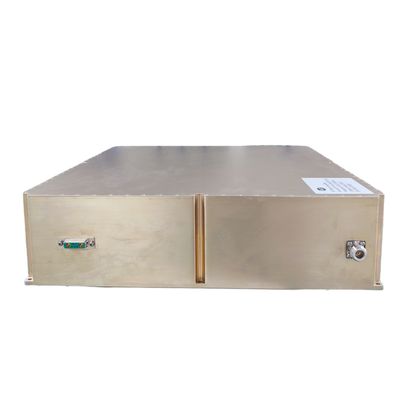

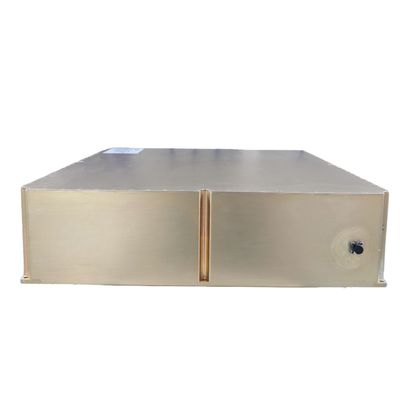

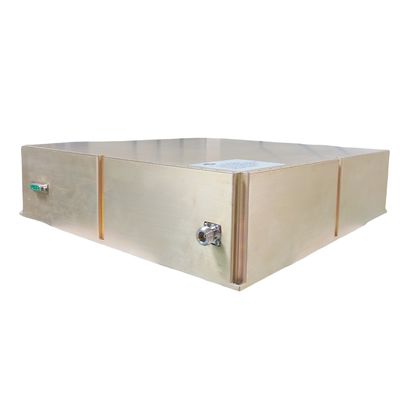

47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication
  • 47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication
  • 47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication
  • 47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication
  • 47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication
  • 47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication
  • 47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication

47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication

Place of Origin China
Brand Name SWT
Model Number SW-PA-05002700-54C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
500~12700MHz
Power Gain:
54dB
P-sat Power Output:
54dBm
Power Gain  Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic  Signals:
-15dBc
Input  VSWR:
2
Operating Voltage:
28VDC
Operating Temp.:
-20~65°C
Application:
Communication, Broadcasting, And Radar
Dimensions:
400*380*100mm
Highlight:

47dBm RF Amplifer

,

300-1500MHz RF Amplifer

,

Telecommunication RF Amplifer

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
7000-7500USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication

  1. Product Overview

    This 250W RF power amplifier is designed to operate within the frequency range of 500-2700MHz, providing high-power amplification for a wide range of wireless communication, radar, and broadcasting applications. It is optimized for broadband operation, ensuring reliable and efficient performance in demanding environments.

47dBm 300-1500MHz Broadband RF Amplifer Solid State Amplifier Module for Telecommunication 0

Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 500   2700 MHz
RF INPUT   0   dBm
Power Gain   54   dB
P-sat Output Power   54   dBm
Power Gain Flatness   ±3   dB
In/Out Impedance 50 Ω
Spurious Signals   -60   dBc
Harmonic Signals   -15 -10 dBc
Operating Voltage 28 30 32 V
Currents   40   A
Input VSWR     2

 Outline Dimensional Drawing
